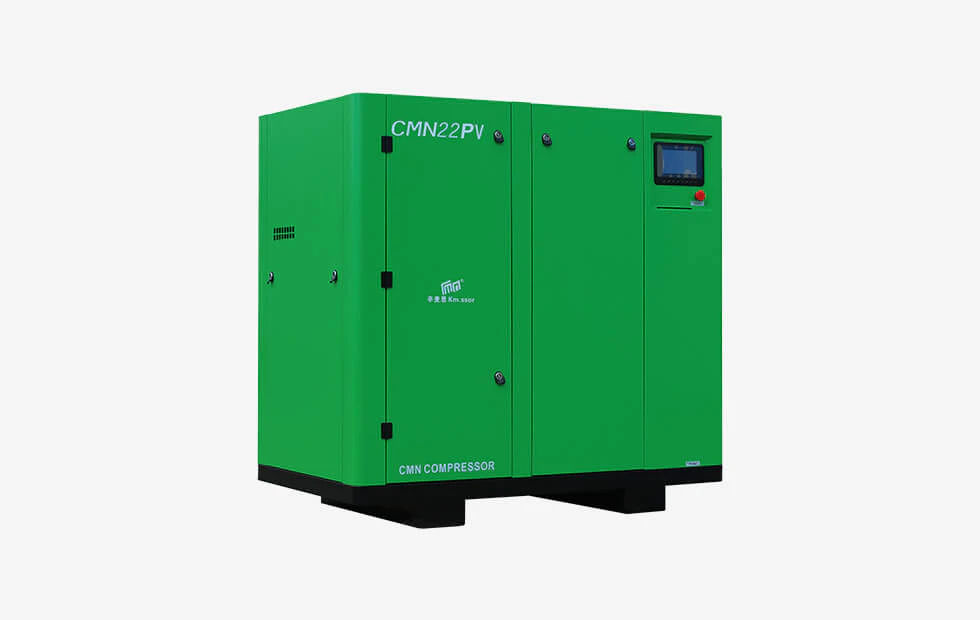

CMN/A industrial frequency micro-oil screw air compressor

Description

CMN/A Industrial Frequency Micro-Oil Screw Air Compressor

The CMN/A Industrial Frequency Micro-Oil Screw Air Compressor is a high-performance compressor designed for industrial use. It is a reliable and efficient solution for your compressed air needs.

Function and Usage

The CMN/A Industrial Frequency Micro-Oil Screw Air Compressor is used to compress air and store it in a tank for later use. It is commonly used in manufacturing plants, automotive repair shops, and other industrial settings. It is essential for powering tools and equipment that require compressed air, such as paint sprayers, sandblasters, and impact wrenches.

Technical parameters

We not only provide air compressors, but also provide perfect solutions to create Xinmaien value for your efficient and energy-saving production.

Technical parameters of CMN series micro-oil screw air compressor

Model	Working pressure		Flow		Power		Noise	Weight
	MPa	Psi	m3/min	cfm	kW	HP	dB(A)	kg
	MPa	Psi	m3/min	cfm	kW	HP	dB(A)	kg	CMN08A	0.8	116	1.31	46.26	7.5	10	62	302
1	145	1.11	39.19						CMN08A					7.5	10	62	302
CMN11A	0.8	116	1.81	63.91	11	15	62	322
	1	145	1.52	53.67
	1.25	181	1.35	47.67
CMN15A	0.8	116	2.60	91.81	15	20	63	505
	1	145	2.35	82.98
	1	145	2.35	82.98					1.6	232	1.21	42.72
	CMN18A	0.8	116	3.30
		1	145	2.90					102.40
1.25		1	145	2.90	181	2.40	84.74		102.40
1.6		232	1.67	58.97
CMN22A		0.8	116	3.90	137.71	22	30	65
	1	145	3.50	123.59
	1	145	3.50	123.59	1.25
	1.6	232	2.40	84.74
	CMN30A	0.8	116	4.92	173.73
1		145	4.22	149.01
1		145	4.22	149.01	1.25	181	3.81	134.53
1.6		232	3.04	107.34
CMN37A		0.8	116	6.30	222.45	37	50	67
	1	145	5.50	194.21
	1	145	5.50	194.21	1.25
	1.6	232	3.60	127.12
	CMN45A	0.8	116	7.50	264.83
1		145	6.30	222.45
1		145	6.30	222.45	1.25	181	5.84	206.21
1.6		232	4.53	159.95
CMN55A		0.8	116	10.30	363.69	55	75	70
	1	145	9.10	321.32
	1	145	9.10	321.32	1.25
	1.6	232	5.80	204.80
	CMN75A	0.8	116	12.60	444.91
1		145	11.50	406.07
1		145	11.50	406.07	1.25	181	9.94	350.98
1.6		232	6.90	243.64
CMN90A		0.8	116	16.11	568.84	90	125	73
	1	145	14.52	512.70
	1.25	181	12.30	434.31
	1.6	232	9.50	335.45
CMN110A	0.8	116	20.10	709.73	110	150	78	2290
	1	145	17.10	603.80
	1.25	181	15.22	537.42
	1.6	232	11.60	409.60
CMN132A	0.8	116	23.10	815.66	132	180	78	2550
	1	145	20.38	719.62
	1.25	181	18.29	645.82
	1.6	232	15.10	533.18
CMN160A	0.8	116	28.85	1018.69	160	220	78	3800
	1	145	24.52	865.80
	1.25	181	22.17	782.82
	1.6	232	19.10	674.42
CMN200A	0.8	116	36.63	1293.41	200	270	78	4100
	1	145	32.70	1154.64
	1.25	181	27.72	978.79
	1.6	232	21.90	773.29
CMN250A	0.8	116	42.88	1514.09	250	340	78	4500

Unique Features and Advantages

Minimal Oil Consumption: The CMN/A Industrial Frequency Micro-Oil Screw Air Compressor consumes minimal oil, which reduces the overall cost of operation.
Oil Separation System: The oil separation system ensures that the compressed air is free of oil, which eliminates the risk of contamination in the production process.
Compact Design: The compact design of the compressor makes it easy to install in small spaces.
High Efficiency: The CMN/A Industrial Frequency Micro-Oil Screw Air Compressor is highly efficient, which reduces the cost of operation and increases productivity.
Improved Energy Efficiency: The compressor has been designed to improve energy efficiency, which reduces energy consumption and lowers operating costs.
Enhanced Durability: The CMN/A Industrial Frequency Micro-Oil Screw Air Compressor is designed for durability and can withstand harsh industrial environments.

Working Principle

The CMN/A Industrial Frequency Micro-Oil Screw Air Compressor works by drawing in air through an intake valve, which is then compressed by two rotating screws. The compressed air is then stored in a tank for later use.

Applications

The CMN/A Industrial Frequency Micro-Oil Screw Air Compressor is suitable for a wide range of industrial applications, including:

Manufacturing plants
Automotive repair shops
Printing and packaging facilities
Food and beverage production
Pharmaceutical production

What is Micro-Oil Screw Air Compressor?

A Micro-Oil Screw Air Compressor is a type of compressor that compresses air and separates oil from the compressed air. It is commonly used in industrial settings to power tools and equipment that require compressed air.

How Does Micro-Oil Screw Air Compressor Work?

A Micro-Oil Screw Air Compressor works by drawing in air through an intake valve, which is then compressed by two rotating screws. The compressed air is then passed through an oil separation system, which removes any oil from the compressed air. The clean compressed air is then stored in a tank for later use.

Main Components of Micro-Oil Screw Air Compressor

The main components of a Micro-Oil Screw Air Compressor include:

Intake valve
Two rotating screws
Oil separation system
Storage tank

How do the Components Affect the Performance and Lifespan of a Micro-Oil Screw Air Compressor?

The components of a Micro-Oil Screw Air Compressor play a critical role in its performance and lifespan. The intake valve and screws are responsible for compressing the air, and the oil separation system ensures that the compressed air is free of oil. The storage tank stores the compressed air for later use. Proper maintenance of these components is essential to ensure the longevity and optimal performance of the compressor.

Key Technologies Used in the Design and Manufacturing of Micro-Oil Screw Air Compressor

The design and manufacturing of a Micro-Oil Screw Air Compressor involve several key technologies, including:

Rotary screw technology for compressing air
Oil separation technology for removing oil from compressed air
Energy-efficient motor technology
Advanced manufacturing processes to ensure precision and quality

How Does the Design of Micro-Oil Screw Air Compressor Improve Energy Efficiency Compared to Other Types of Compressors?

The design of the Micro-Oil Screw Air Compressor improves energy efficiency in several ways. The oil separation system ensures that the compressed air is free of oil, which reduces the energy required to remove oil downstream. Additionally, the compressor is designed to be highly efficient, which reduces energy consumption and operating costs.

What Materials are Used to Manufacture Micro-Oil Screw Air Compressor and Why are They Suitable for Specific Applications?

The materials used to manufacture Micro-Oil Screw Air Compressor depend on the specific application. In general, high-quality materials are used to ensure durability and reliability. For example, stainless steel and aluminum are commonly used for parts that come into contact with compressed air, as they are resistant to corrosion and contamination.

Maintenance Plan for Micro-Oil Screw Air Compressor

A maintenance plan for a Micro-Oil Screw Air Compressor should include regular inspections and cleaning of the intake valve, screws, and oil separation system. The compressor should also be serviced regularly to ensure optimal performance and longevity.

Industries and Applications Where Micro-Oil Screw Air Compressor is Commonly Used

The Micro-Oil Screw Air Compressor is commonly used in manufacturing plants, automotive repair shops, printing and packaging facilities, food and beverage production, and pharmaceutical production.

How is Oil Contamination Controlled in Micro-Oil Screw Air Compressor?

The oil separation system in the Micro-Oil Screw Air Compressor removes any oil from the compressed air, which eliminates the risk of oil contamination downstream. Regular maintenance of the oil separation system is essential to ensure its proper function and prevent oil contamination.

About Our Company and Products

Our company is a leading supplier of air compressors in the Chinese market. We offer a range of high-quality products, including the Micro-Oil Screw Air Compressor and Oil-Free Screw Air Compressor. Our products are manufactured using advanced technologies and high-quality materials to ensure optimal performance and durability. We also offer customized solutions to meet the specific needs of our customers. Contact us today to learn more about our products and services.

Factory Image:

At our company, we pride ourselves on delivering high-quality products at competitive prices, backed by exceptional customer service. We are committed to meeting the needs of our customers and providing them with the best possible solutions for their compressed air needs. Contact us today to learn more about our products and services and how we can help your business succeed.
